KTM DIRT TRICKS FRONT 14 REAR 50 SPROCKET DID CHAIN 250 350 450 500 530 4ST DOME WASHER

$354.95
Sold Out


Calculate Shipping

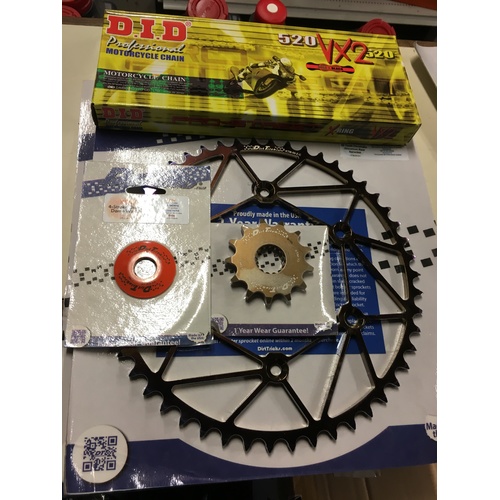

BRAND NEW DIRT TRICKS SPROCKET & DID CHAIN SET + ORANGE COUNTER SHAFT SPROCKER DOME WASHER

14 TOOTH FRONT SPROCKET

50 TOOTH CHROMATIC REAR SPROCKET

1 X FRONT SPROCKET DOME WASHER

1 X DID VX2 520 X RING CHAIN - 120 LINK LONG ,  COLOR  GOLD / BLACK

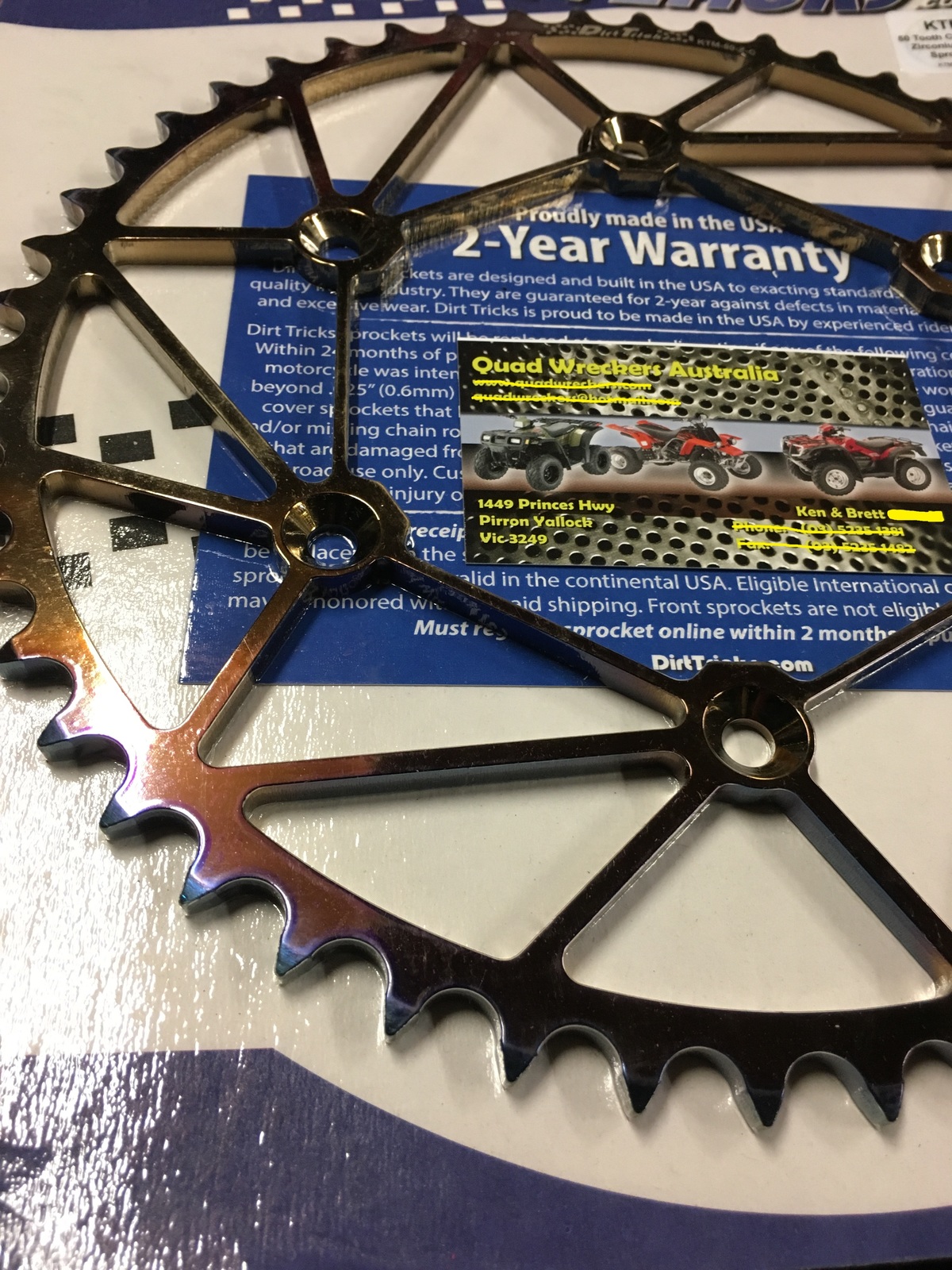

THESE REAR SPROCKETS LOOK REAL COOL ! STAND OUT FROM THE CROWD !  THEY ARE A LITTLE HARD TO PHOTOGRAPH , BUT THEY ARE MULTI COLORED DEPENDING ON THE LIGHT SHADE & DIRECTION YOUR LOOKING AT IT FROM

The Dirt Tricks Chromatic Rear Sprocket is a part of our latest sprocket design and is a revolutionary change in weight and color. Our new Dirt Tricks Special Edition Chromatic sprockets are 2oz lighter than our chrome plated design, and are comparable to most of the performance aluminum sprockets and lighter than the twin metal designs available. The new coating on these sprockets reduces friction up to 50%, increases durability, and looks sharp! Our Special Edition sprockets will outlast any sprocket on the market.

Dirt tricks front sprockets are constructed of through-hardened, shock resistant die steel.  Most front sprockets sold today are "case hardened", meaning that only a thin layer of steel is hardened.  Below that layer is a core of soft steel.  Dirt Tricks front sprockets are heat treated to as hard as bearing races all the way through, giving them the ultimate in toughness and wear resistance.  How can we have such hard material without being brittle?  Shock-resistant die steel is the answer.  This is the same steel used to punch hole through 1" thick plates of steel, on high speed punch presses.



To Suit:



  • KTM 1999 + 4 Strokes 250cc-530cc
  • Husqvarna 2014 + 125cc-501cc ( KTM MODELS )
  • Husaberg 2009 - 2014 Most models
  • Why does my KTM four-stroke Leak Oil Around the Counter-shaft?

    For twenty plus years, KTM has used a “spring washer” or “dome washer” along with a locking bolt to retain the four-stroke counter-shaft sprocket. A retaining ring is used on the two-strokes. After a year or two of riding, many KTM four-strokes develop an oil leak around the counter-shaft. This often shows itself as streaks of oil lines on the face of the counter-shaft sprocket. When removing the counter-shaft sprocket, most riders immediately see the lip seal pressed into the case around the splined counter-shaft. This is usually what gets replaced in order to eliminate the oil leak. Often the leak still remains after replacing the seal. So how is the oil escaping? We at Dirt Tricks were frustrated as were many, so we disassembled everything possible behind the counter-shaft sprocket. Then we 3D-modeled what we found in order to figure out where the oil was coming from. In the diagram, you will see an “O-ring” mounted in the spacer bushing. That O-ring keeps oil from leaking down the shaft between the counter-shaft and the spacer bushing. The lip seal rides against the outside of the spacer-bushing. What we also discovered, is that every time we noticed an oil leak, the “spring washer” on the outside of the sprocket was not holding the sprocket tight. Then we examined the stock KTM spring washer and discovered that over time, it completely flattened. Often, you can actually spin the spring washer on the bike with the sprocket bolted down. If you study the diagram below, when the spring washer does not hold pressure against the sprocket, the entire stack of parts – from sprocket bolt to the bearing race, is loose. That allows that small O-ring to separate from the face of the bearing race and there is the oil path. Without a functioning O-ring, the spacer bushing is just a pipe for the oil to run through.

    The Solution:

    When performing hardness tests on the KTM spring washer, we determined that it was not much of a spring, and yielded the first time is was compressed and would not spring back. We solved the problem by producing a through-hardened, tool-steel replacement spring washer that acts like a true spring. When removed, unlike the KTM washer, it returns to its original dome shape. The Dirt Trick dome washer can be repeatedly re-used. It is extremely hard and tough.
    We hope this has not been to over-technical, but with a little detective work, we have solved a simple but nagging problem. So if you have a counter-shaft oil leak, start by replacing your spring washer with the Dirt Tricks dome washer.

    KTM/Husky Countershaft Dome Washer Fitment:

  • KTM: All 4-stroke models up to 520
    ’17 2-stroke models
  • Husaberg: All 4-stroke models up to 520
  • Husqvarna: ’14-current 4-stroke models up to 520
    ’17 2-stroke models



ONE OF THE FEW QUALITY ITEMS STILL MADE IN THE USA

ANY QUESTIONS ON FITMENT PLEASE ASK BEFORE MAKING PURCHASE

(10541)

SKU 10541
Brand DIRT TRICKS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.020m
Shipping Length 0.300m
Shipping Cubic 0.001500000m3
